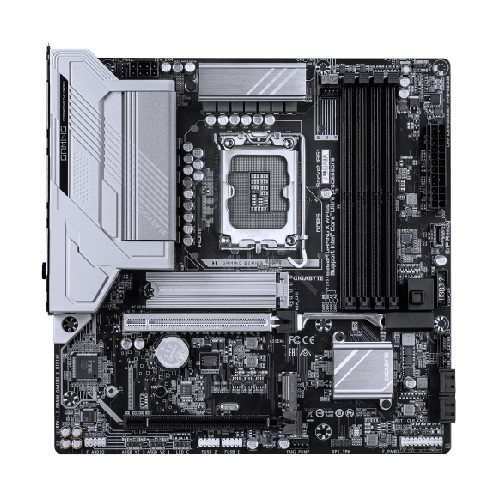

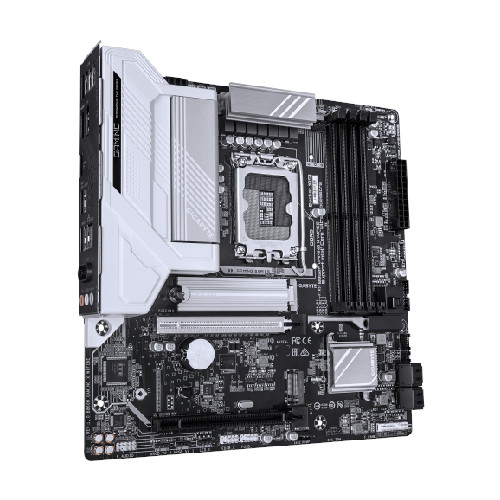

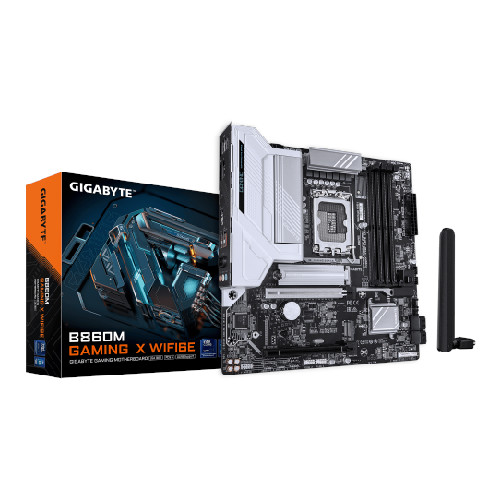

לוח למעבד דור 15 Gigabyte B860M GAMING X WIFI6E ATX 2.5GB LAN

לוח אם איכותי מבית Gigabyte, תואם למעבדי Intel Core Ultra (דור 15), עם תושבת LGA1851, ערכת שבבים B860 ותמיכה בזיכרונות DDR5.

לוח למעבד דור 15 Gigabyte B860M GAMING X WIFI6E ATX 2.5GB LAN

לוח אם איכותי מבית Gigabyte, תואם למעבדי Intel Core Ultra (דור 15), עם תושבת LGA1851, ערכת שבבים B860 ותמיכה בזיכרונות DDR5.

this exists because for some reason, the price refuses to show up unless an option with a price set exists. even if it's 0, hidden, and disabled. ¯\_(ツ)_/¯
סה"כ כולל תוספות:

פריסת תשלומים

חשוב לנו שתדעו:

תשלום מאובטח
משלוח חינם
משווק מורשה

יש לכם שאלות?

שאלו אותנו על מוצר זה

מוצרים נוספים שיכולים לעניין אתכם

מידע נוסף

יצרן

דגם

תושבת המעבד

ערכת שבבים

סוג הלוח

Micro ATX

תמיכה במעבדים

LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

זכרון

Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

זכרון נתמך

כרטיס רשת

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

כרטיס קול

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

חיבורי USB

CPU:
– 1 x USB4® USB Type-C® port on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
– 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)

חריצי הרחבה (slots)

CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

אפשרות לכונני אחסון

CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2Q_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

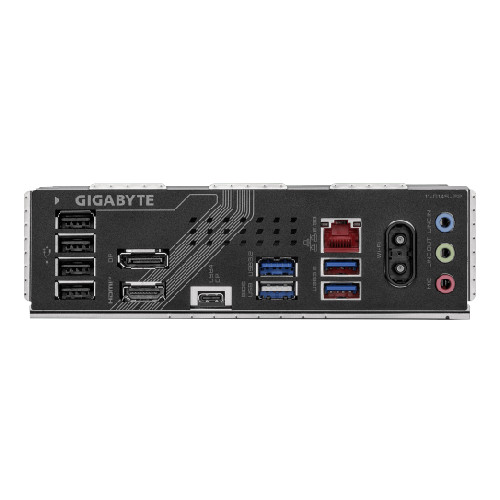

חיבורים אחוריים (Back Panel I/O Ports)

1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU.

חיבורים פנימיים (Internal I/O Connectors)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
