לוח אם Gigabyte B650E A ELITE X AX ICE AM5 DDR5

לוח אם Gigabyte B650E A ELITE X AX ICE AM5 DDR5

1,299

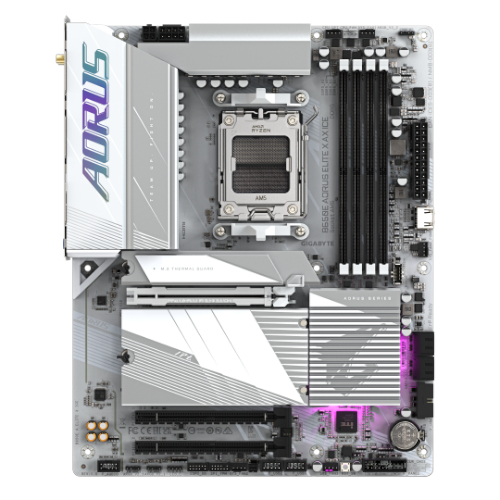

לוח האם B650E AORUS ELITE X AX ICE מבית Gigabyte תומך במעבדי AMD Ryzen 7000/8000/9000 ומבוסס על ערכת השבבים AMD B650. כולל תמיכה בזיכרון DDR5 עד 8000MT/s, רשת 2.5GbE, Wi-Fi 6E, ויציאת USB Type-C® עם תמיכה ב-USB 3.2 Gen 2. יש לו שלושה חריצי M.2, אפשרויות RAID 0, 1, 10 ותמיכה בגרפיקה משולבת עם HDMI 2.1.

?
קנייה בטוחה
?
משלוח חינם
?
איסוף מהסניף
סה"כ כולל תוספות: ₪1,299
?
קנייה בטוחה
?
משלוח חינם

1,299

[wpcbn_btn_archive]

אפשרויות משלוח:

?
?

נרכשים לעתים קרובות ביחד

סקירה

מידע נוסף

יצרן

דגם

B650E A ELITE X ICE

תושבת המעבד

ערכת שבבים

סוג הלוח

ATX

תמיכה במעבדים

AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
* Please refer to "CPU Support List" for more information.

זכרון

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

זכרון נתמך

כרטיס רשת

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

כרטיס קול

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

חיבורי USB

CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support (Note)
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel

(Note) This USB Type-C® port supports a maximum speed of 40Gbps as a USB4 port when pairing the Ryzen 8000 series processors.

חריצי הרחבה (Slots)

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
– 2 x PCI Express x16 slot, , supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

אפשרות לכונני אחסון

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

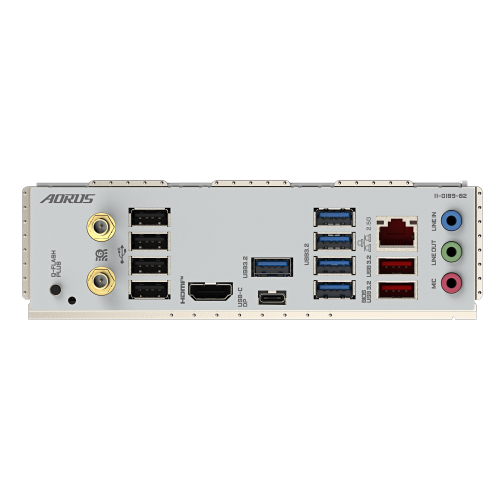

חיבורים אחוריים (Back Panel I/O Ports)

1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

חיבורים פנימיים (Internal I/O Connectors)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
* Only available with the AMD Radeon™ Graphics Processors.
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

אחריות
