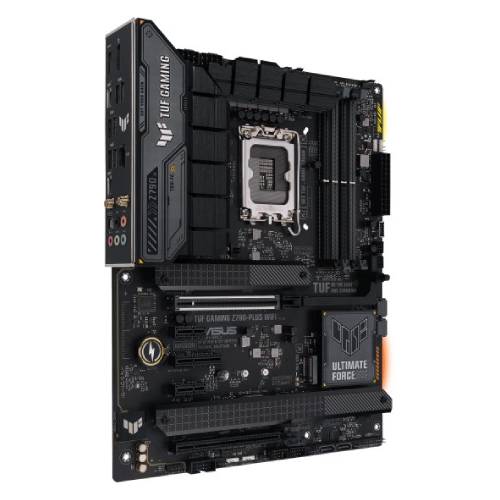

Name: לוח אם ASUS TUF GAMING Z790-PLUS WIFI Intel LGA1700 Z790 DDR5
SKU: 4711387014509
Price: 1599 ILS
Availability: InStock

סקירה

מידע נוסף

יצרן	Asus
דגם	TUF GAMING Z790-PLUS WIFI
תושבת המעבד	1700
ערכת שבבים	Intel® Z790 Chipset
סוג הלוח	ATX
תמיכה במעבדים	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to http://www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
זכרון	4x DIMM, Max. 128GB, DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU / Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
זכרון נתמך	DDR5
כרטיס רשת	1x Intel® 2.5Gb Ethernet TUF LANGuard
כרטיס קול	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback" Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio Cover Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
חיבורי USB	Rear USB (Total 8 ports) 1x USB 3.2 Gen 2×2 port (1x USB Type-C®) 3x USB 3.2 Gen 2 ports (2x Type-A + 1x USB Type-C®) 4x USB 3.2 Gen 1 ports (4x Type-A) Front USB (Total 7 ports) 1x USB 3.2 Gen 2 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports
חריצי הרחבה (Slots)	Intel® 13th & 12th Gen Processors* 1x PCIe 5.0 x16 slot Intel® Z790 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode) 1x PCIe 4.0 x4 slot 2x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
אפשרות לכונני אחסון	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
חיבורים אחוריים (Back Panel I/O Ports)	1x USB 3.2 Gen 2×2 port (1x USB Type-C®) 3x USB 3.2 Gen 2 ports (2x Type-A + 1x USB Type-C®) 4x USB 3.2 Gen 1 ports (4x Type-A) 1x DisplayPort 1x HDMI® port 1x Wi-Fi Module 1x Intel® 2.5Gb Ethernet port 5x Audio jacks 1x Optical S/PDIF out port
חיבורים פנימיים (Internal I/O Connectors)	Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers Power related 1x 24-pin Main Power connector 2x 8-pin +12V Power connectors Storage related 4x M.2 slots (Key M) 4x SATA 6Gb/s ports USB 1x USB 3.2 Gen 2 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header with Chassis intrude function 1x Thunderbolt™ (USB4®) header
חיבורים למסך	Display Port, HDMI
אחריות	3 שנים
