Name: לוח אם GIGABYTE H610M H DDR5
SKU: H610M H DDR5
Price: 449 ILS
Availability: InStock

סקירה

מידע נוסף

יצרן	Gigabyte
דגם	H610M H DDR5
תושבת המעבד	1700
ערכת שבבים	Intel® H610 Express Chipset
סוג הלוח	Micro ATX
תמיכה במעבדים	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
זכרון	תמיכה במקסימום תדר שעוון 4800 עד 64Gb
זכרון נתמך	DDR5
כרטיס רשת	Realtek® 2.5Gb LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
כרטיס קול	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
חיבורי USB	2x USB3.2 4x USB2.0
חריצי הרחבה (Slots)	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
אפשרות לכונני אחסון	2x M.2 Socket 3 PCIe 3.0 x4 4x SATA 6Gb/s RAID 0, RAID 1, RAID 5, and RAID 10

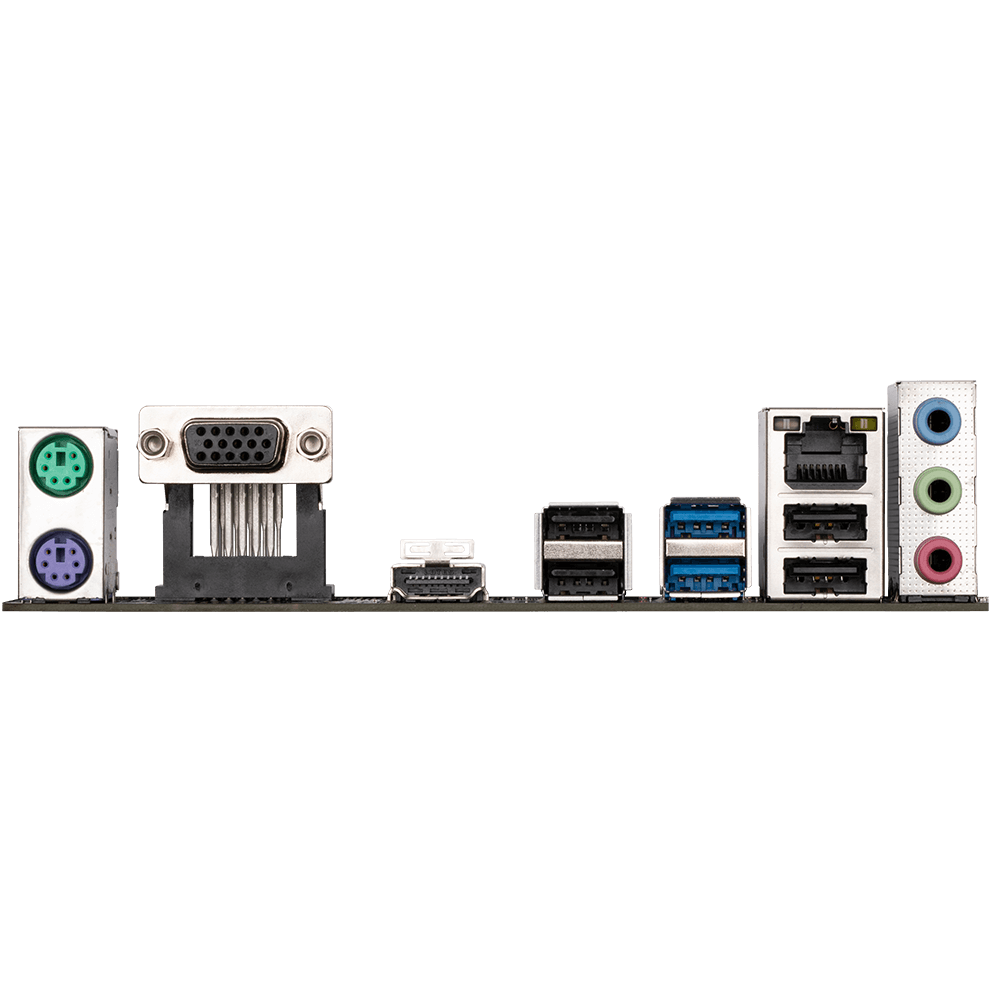

חיבורים אחוריים (Back Panel I/O Ports)	4x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 1x VGA port 1x HDMITM port 1x Realtek 2.5Gb Ethernet port 3x Audio jacks 1x PS/2 Keyboard/Mouse combo port
חיבורים פנימיים (Internal I/O Connectors)	Fan and Cooling related 1x 4-pin CPU Fan header 2x 4-pin Chassis Fan headers Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports USB 1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x Speaker header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header
חיבורים למסך	HDMI, VGA
אחריות	3 שנים
