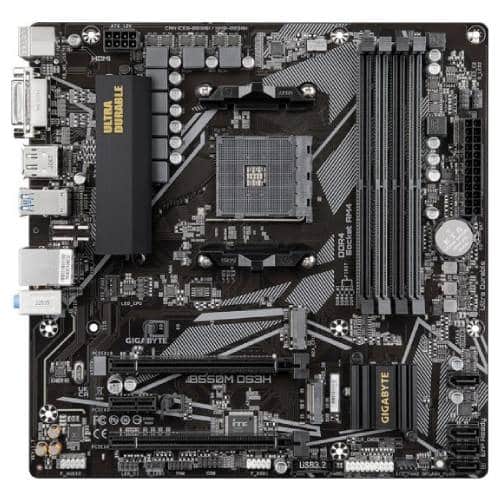

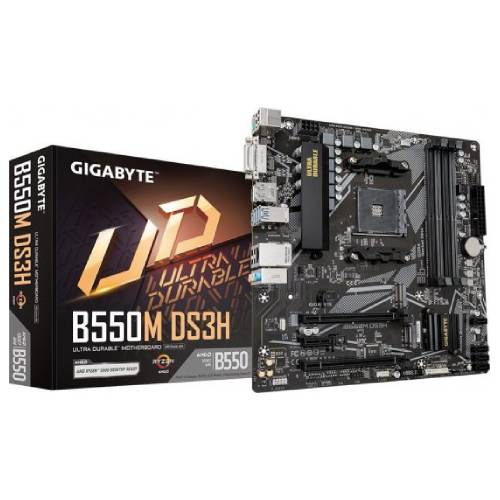

Name: לוח אם Gigabyte B550M DS3H (rev. 1.7) AM4 DDR4
Price: 550 ILS
Availability: InStock

לוח אם Gigabyte B550M DS3H (rev. 1.7) AM4 DDR4

₪550

לוח אם איכותי במיוחד מבית Gigabyte, בעל תושבת AM4, ערכת שבבים B550, תאימות לזכרונות DDR4 ובעל יציאת HDMI ו-DVI.

למידע נוסף

למגוון מוצרי Gigabyte

קנייה בטוחה

משלוח חינם

איסוף מהסניף

קנייה בטוחה

משלוח חינם

₪550

כמות:

[wpcbn_btn_archive]

אפשרויות משלוח:

נרכשים לעתים קרובות ביחד

סקירה

מידע נוסף

יצרן	Gigabyte
דגם	B550M DS3H (rev. 1.7)
תושבת המעבד	AM4
ערכת שבבים	AMD B550
סוג הלוח	Micro ATX
תמיכה במעבדים	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.)
זכרון	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
זכרון נתמך	DDR4
כרטיס רשת	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
כרטיס קול	Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
חיבורי USB	CPU: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
חריצי הרחבה (Slots)	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0×16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: – Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: – Supporting PCIe 3.0 x1 mode
אפשרות לכונני אחסון	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/22110 SSDs: – AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs – AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: – Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset Support for RAID 0, RAID 1, and RAID 10

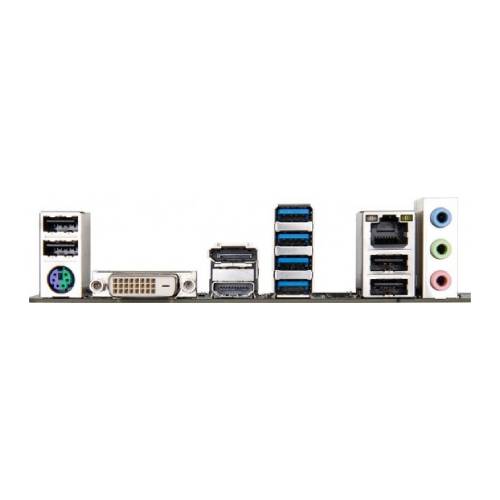

חיבורים אחוריים (Back Panel I/O Ports)	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
חיבורים פנימיים (Internal I/O Connectors)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
אחריות	3 שנים
